FTR 150 - Feeder Conveyor
FTR150 - Overview

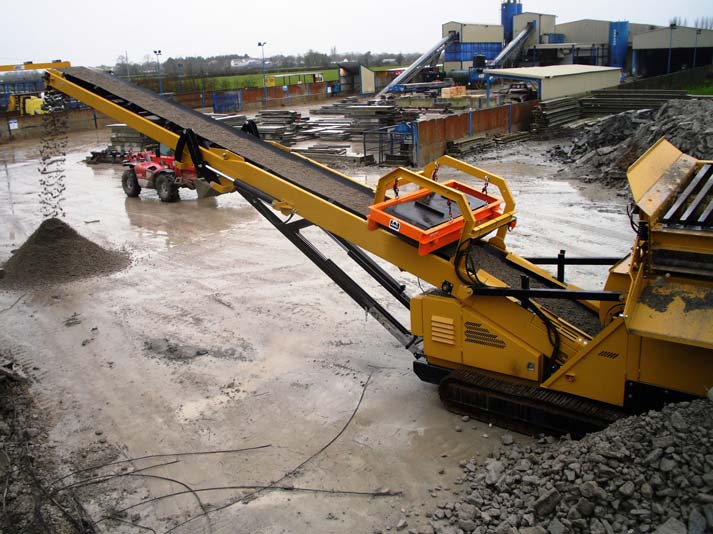

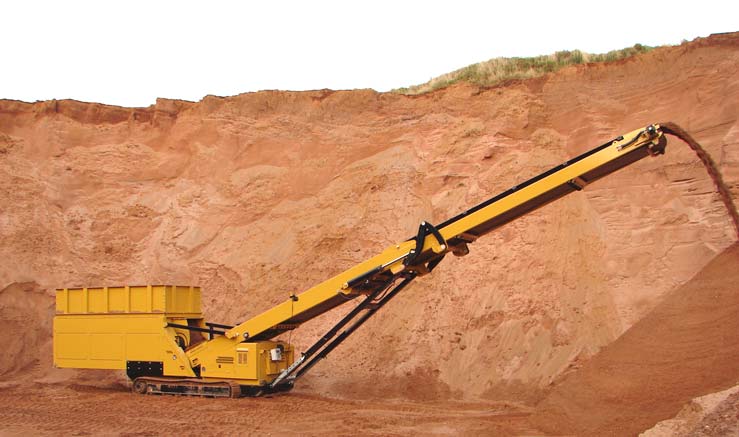

The FTR150 is a track mobile high capacity stockpiling Loader conveyor unit, which is strong and economical to run.

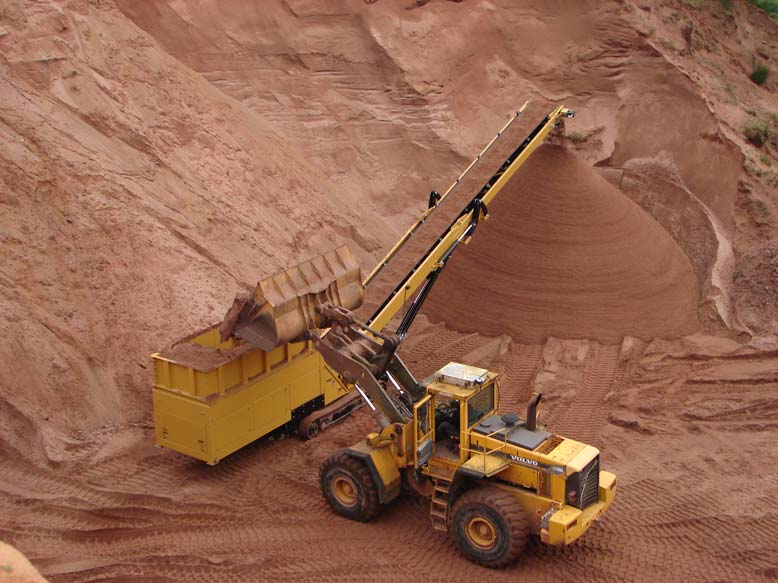

The FTR150 is versatile and can be used on its own or with other screening plants. Its portability allows it to work in confined spaces and can be used to load wagons, as a surge feeder within an existing plant or at shipping ports/railway yards.
The FTR150 consists of a track base, feeder, main conveyor, powerunit and has a pendant remote control system.
FTR150 - Options

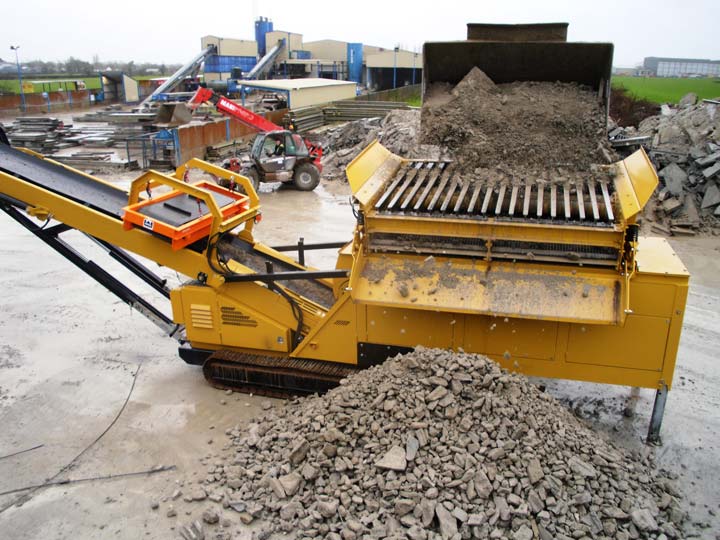

- Remote control tipping grid
- Twin deck vibrating grid
- Permanent Magnet
- Radio Remote Control to Operate Tracks
- Larger Hopper Capacity of 9cu m
FTR150 - Advantages
- Capable of handling up to 700TPH (considering a bulk density of 16 tons/cm3).
- Quick set up time typically under 20 minutes.
- Track mobile unit
- High performance hydraulic system
- Available with, hopper extensions, remote tipping grid or Live Head
FTR150 - Applications
- Crushed rock
- Sand and gravel
- Coal
- Topsoil
- Wood chip
FTR150 - Technical Specifications
| Total Weight | 12500kg (17800kg with live head) |
| Hopper capacity | 6 m³ |
| Conveyor | 3ply 1050 mm (36”) wide |
| Drive | Self contained 83HP JCB Diesel engine cast iron hydraulic pumps driving cast iron motors |
| Overall Dimensions | 3.32M x 1.52M (11’x5’) |

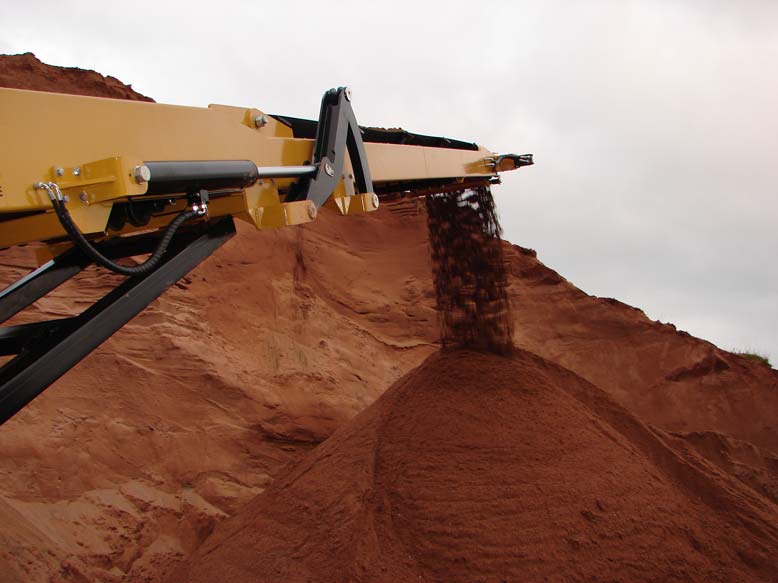

| Maximum Stockpiling Height | 6.9m(22’6”) |
| Stockpile Capacity | 375cu m (490cu yard) |
| Power Unit | Diesel Hydraulic with JCB 444 DieselMax63KW/84HP) |
Conveyor Details
| Conveyor Belt | 3 ply 1050mm (42") wide | |
| Drums outside diameter | 350mm (12") | |
| Drum speed (max.) | Feeder | 11 rpm |
| Main | 100 rpm | |
| Conveyor Belt Speed | Feeder | 11.92 m/min (39 ft/min) |
| Main | 109 m/min (355 ft/min) |
Crawler Track Data
| Tractive Effort | 14,276 daN |
| Gradability Percentage | 77 -75 % |
| Gearbox Ratio | 141:1 |
| Hydraulic Motor | Rexroth 30 cc/rev |
| Approximate Speed | 1.53 Km/hr (0.95 Mph) |
