ST80 - Overview

The ST80 is a mobile high capacity-stockpiling conveyor, which is strong and economical to run independently or as a coupling conveyor.

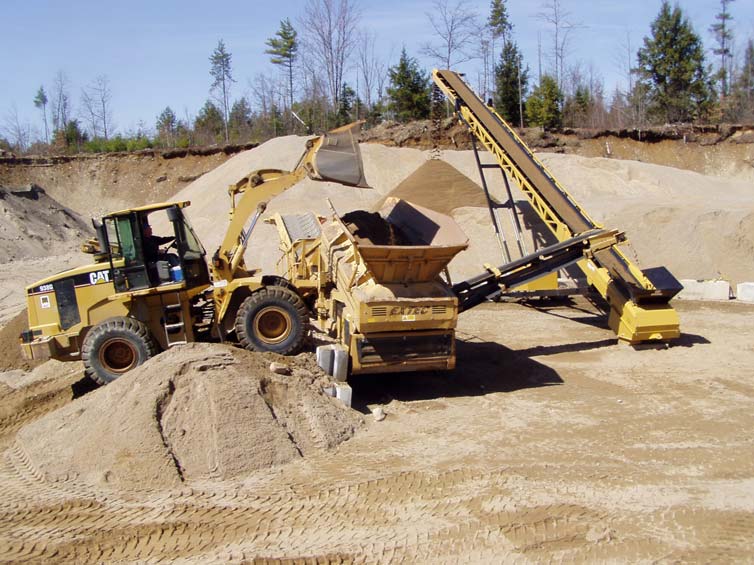

The ST80 is versatile and can be used on its own or with other screening plants.

Its portability allows it to work in confined spaces and also where heavier conveyors would find it impossible to manoeuvre.

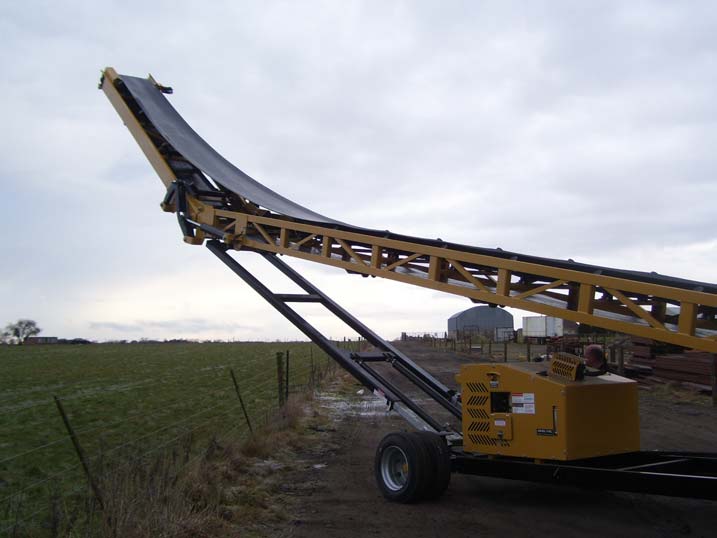

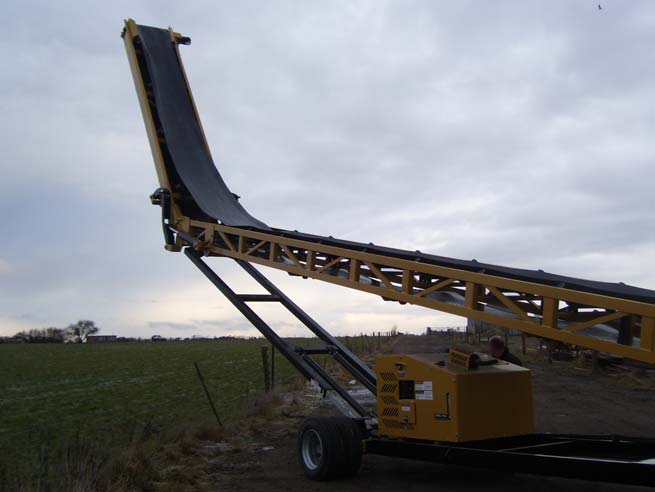

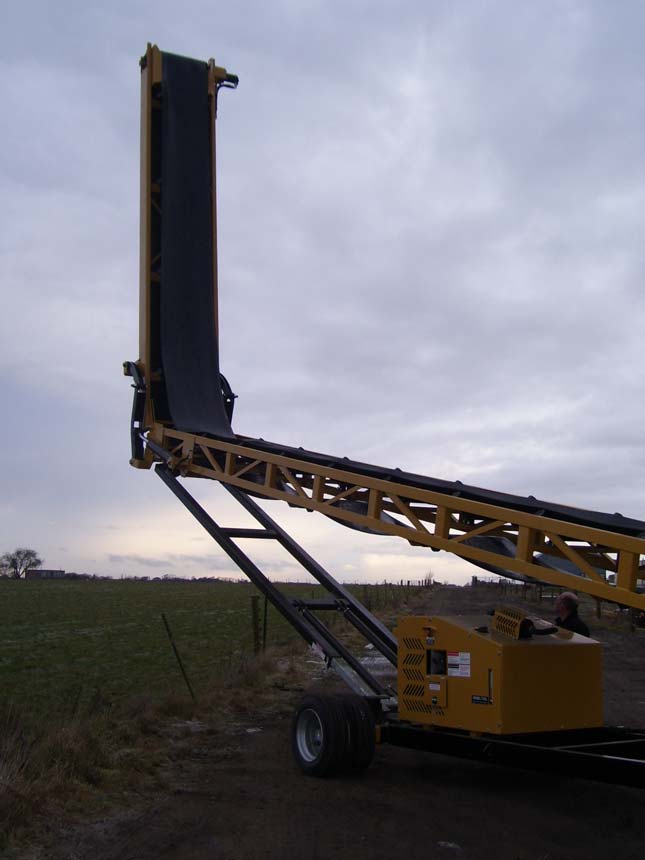

The ST80 consists of a radial wheel axle, feedboot, conveyor, powerunit (optional), has a hydraulic raise lower front ram and comes as standard with Hydraulic folding head section. Complete with weld in Kingpin as standard.

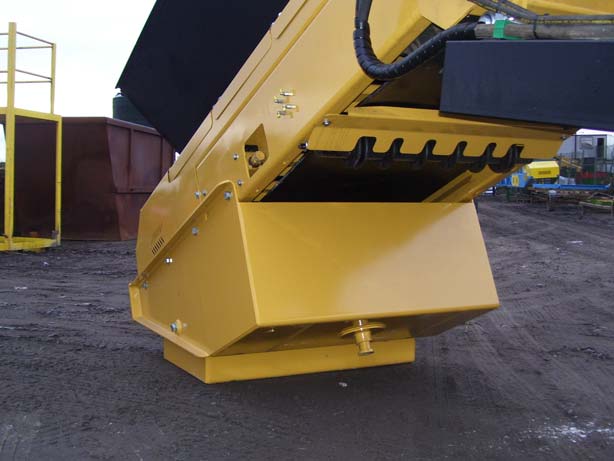

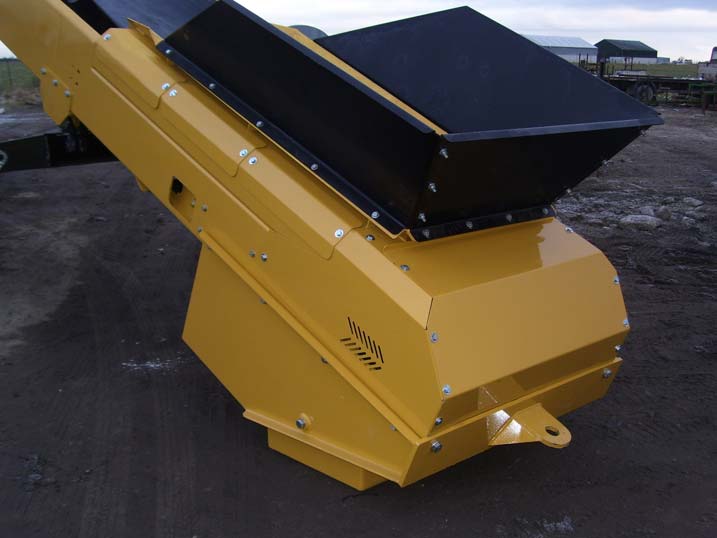

Feedboot

The feedboot directs the sand, gravel, coal etc. onto the conveyor belt.

Conveyor

The main frame can be raised or lowered with a hydraulic cylinder giving alternate stockpiling heights. The conveyor belt can be either plain or chevron, 2 ply, 800mm (32"), 900mm (36") wide, or 1050mm (42") wide.

Radial Wheels

The conveyor is mounted on two swiveling wheels to give radial stockpiling through an arc of approximately 180 degrees.

ST80 - Options

• Self contained 84 H.P. JCB diesel engine
• Electric motor.
• ST80 Conveyors can be easily coupled to any plant machinery with an auxiliary circuit.

ST80 - Advantages

• Capable of handling up to 450TPH.
• Quick set up time typically under 40 minutes.
• High performance hydraulic system.

ST80 - Applications

• Crushed stone
• Sand and gravel
• Coal
• Topsoil
• Wood chip

ST80 - Technical Specifications

Features

Total Weight	10500kg
Width	3m (10')

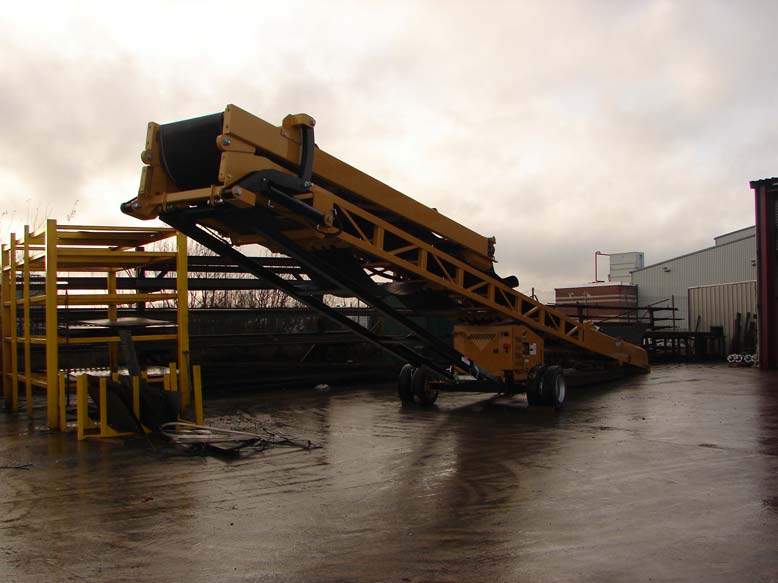

Length (transport folded)	12m (39'1")
Powerunit (optional)	Diesel Hydraulic with JCB 444 DieselMax Water cooled developing 63kW (84HP)

Overall Dimensions

Maximum Stockpiling Height	8.8m (29')
Stockpile Capacity	1234cu m (1615cu yard)

Drive

1. Self-contained 84 HP (63kW) JCB 444 DieselMax water cooled engine and cast iron hydraulic pumps driving cast iron motors.

Engine

JCB 444 DieselMax at 2200 RPM developing 63kW (84 HP)

Hydraulics

Hydraulic Pump

23cc

Hydraulic Motor

Eaton OMV630

Control Valve

Commercial KA18 at 207 Bar (3000 PSI)

Recommended Hydraulic Oil

0 Deg. C - 30 Deg. C ambient temp, Shell Tellus 46 (or equivalent) . + 30 Deg. C ambient temp, Shell Tellus 100 (or equivalent)

Typical Operating Pressures

Empty	29 Bar (400 PSI)
Increase in pressure per 100 Tonnes (112 U.S. Tons) per hour	29 Bar (400 PSI)

Conveyor Details

Conveyor Belt		2 ply 800mm (32") wide or 2 ply 900mm (36") wide or 2 ply 1050mm (42") wide
Drums outside diameter		305mm (12")
Drum speed (max.)	Empty	145 rpm
	Full	135 rpm
Conveyor Belt Speed	Empty	127 m/min (416 ft/min)
	Full	119 m/min (390 ft/min)
