ST 60 - Wheeled Conveyor

ST60 - Overview

The ST60 is a mobile high capacity-stockpiling conveyor, which is strong and economical to run independently or as a coupling conveyor

The ST60 is versatile and can be used on its own or with other screening plants.

Its portability allows it to work in confined spaces and also where heavier conveyors would find it impossible to manoeuvre.

The ST60 consists of a radial wheel axle, feedboot, conveyor, powerunit (optional) and has a hydraulic raise lower front ram.

Feedboot

The feedboot directs the sand, gravel, coal etc. onto the conveyor belt.

Conveyor:

The main frame can be raised or lowered with a hydraulic cylinder giving alternate stockpiling heights. The conveyor belt can be either plain or chevron, 2 ply, 800mm (32"), 900mm (36") wide, or 1050mm (42") wide.

Radial Wheels

The conveyor is mounted on two swiveling wheels to give radial stockpiling through an arc of approximately 180 degrees.

ST60 - Options

  • Self contained 50 H.P. CAT diesel engine.
  • Electric motor.
  • ST60 Conveyors can be easily coupled to any plant machinery with an auxiliary circuit.

ST60 - Advantages

  • Capable of handling up to 350TPH.
  • Quick set up time typically under 20 minutes.
  • High performance hydraulic system.

ST60 - Applications

  • Crushed stone
  • Sand and gravel
  • Coal
  • Topsoil
  • Wood chip

ST60 - Technical Specifications

Features

Total weight 3200kg
Width 2.35m (7'8")
Length (transport folded) 12m (39'1")

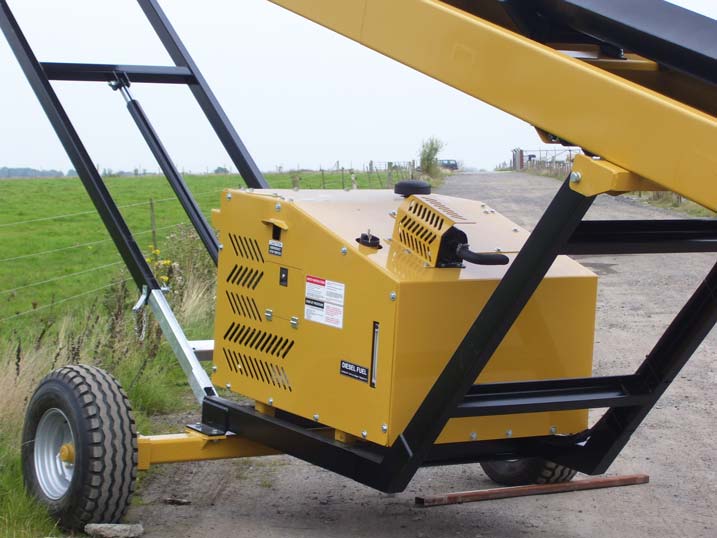

Powerunit (optional) Diesel Hydraulic with CAT 2.2NA (38KW/50 HP)

Overall Dimensions

Maximum Stockpiling Height 7.5m (25')
Stockpile Capacity 705cu m (922 cu yard)

Engine:

  1. CAT 2.2Na running at 2300 RPM developing 38 kW (50 HP)

Hydraulics

Hydraulic Pump
Ultra 2PL105
Hydraulic Motor
Eaton OMT 500 (OMV630 for 42")
Control Valve
Commercial KA18 at 207 Bar (3000 PSI)
Recommended Hydraulic Oil
0 Deg. C - 30 Deg. C ambient temp, Shell Tellus 46 (or equivalent) . + 30 Deg. C ambient temp, Shell Tellus 100 (or equivalent)

Typical Operating Pressures

Empty 29 Bar (400 PSI)
Increase in pressure per 100
Tonnes (112 U.S. Tons) per hour
29 Bar (400 PSI)

Conveyor Details

Conveyor Belt   2 ply 800mm (32") wide
or
2 ply 900mm (36") wide
or
2 ply 1050mm (42") wide
Drums outside diameter   273mm (10.75")
Drum speed (max.) Empty 145 rpm
  Full 135 rpm
Conveyor Belt Speed Empty 127 m/min (416 ft/min)
  Full 119 m/min (390 ft/min)

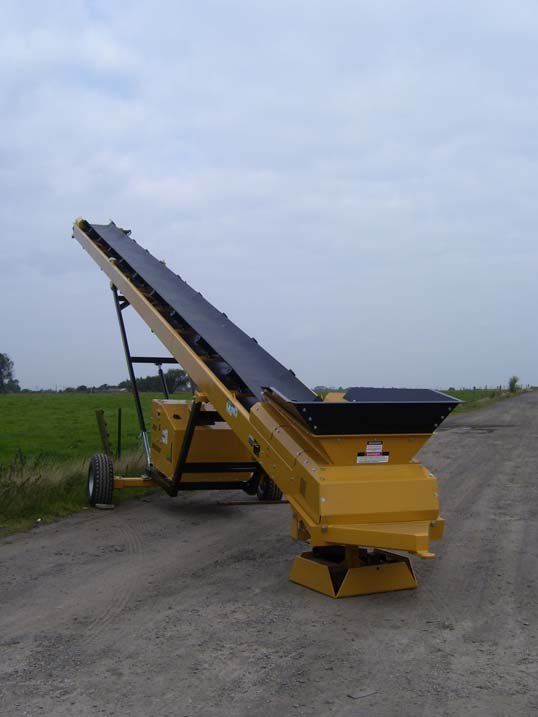

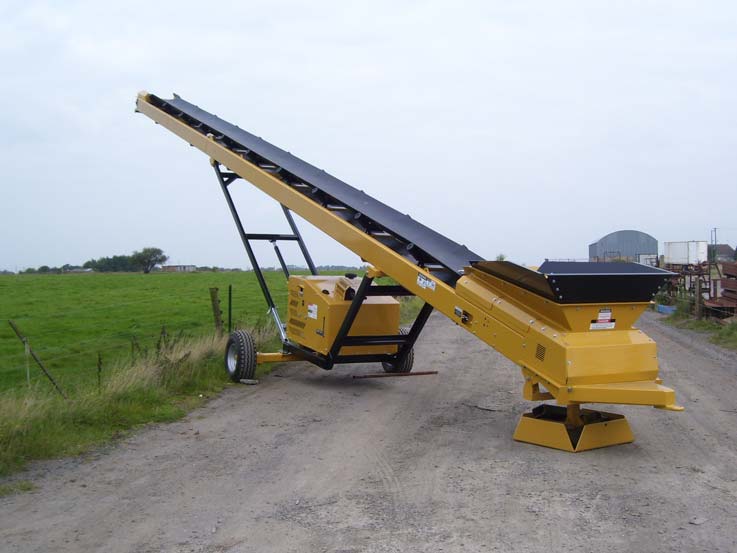

ST60 - Images
