DF410 - Overview

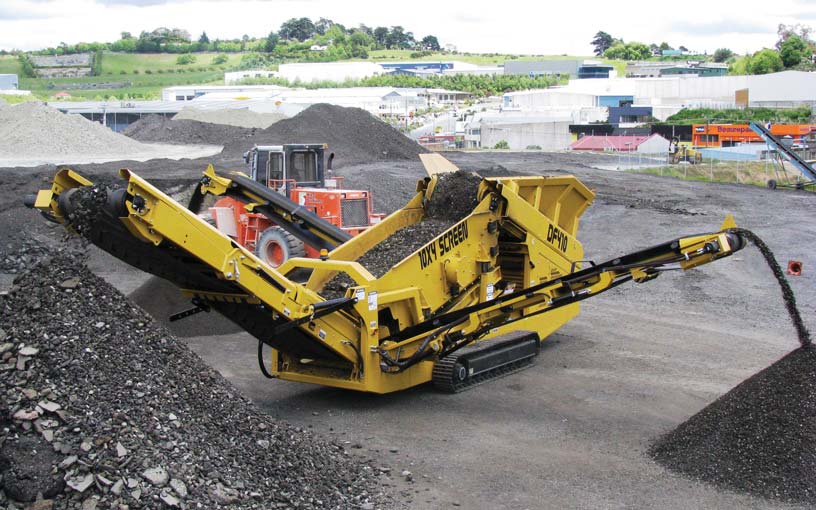

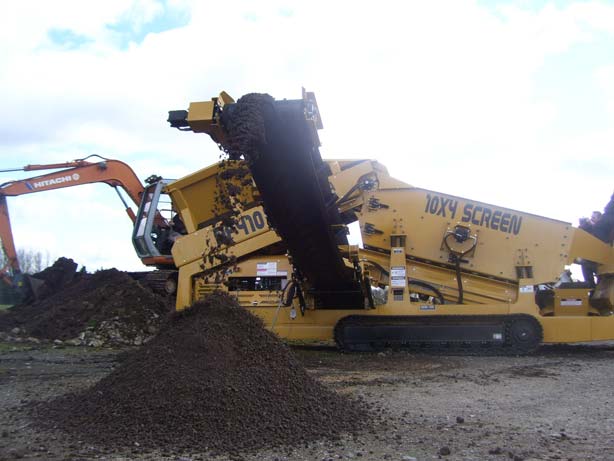

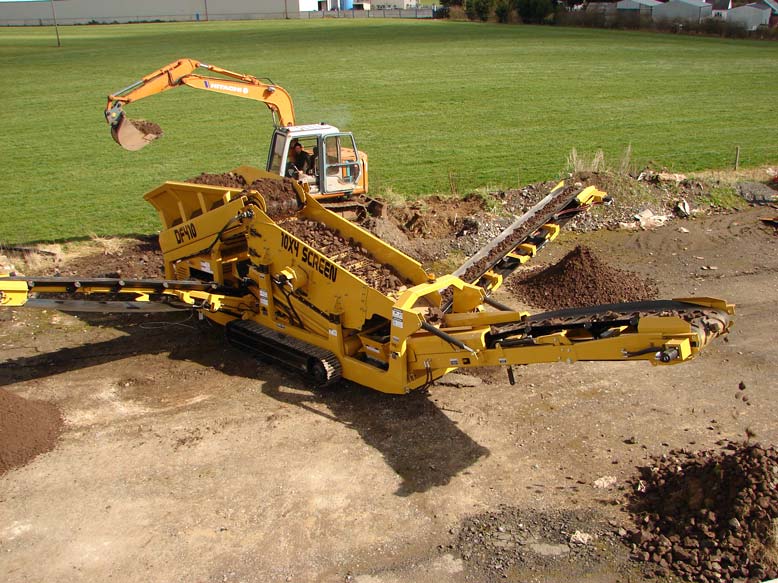

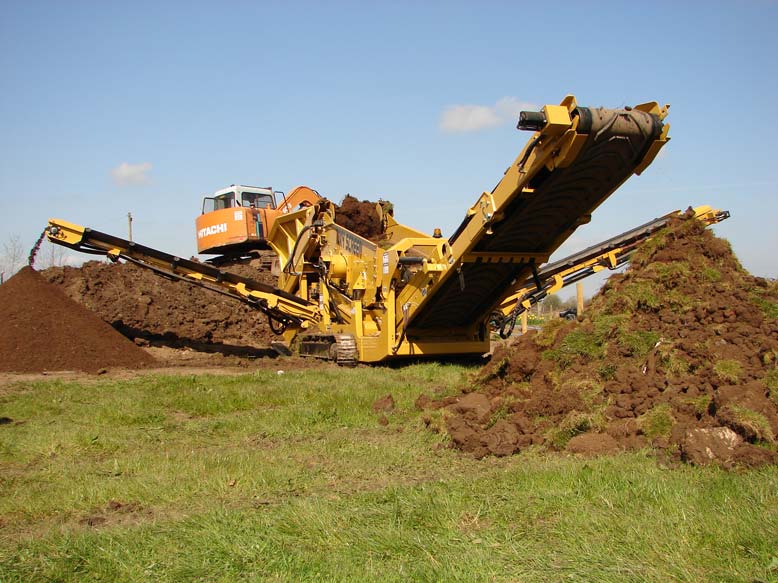

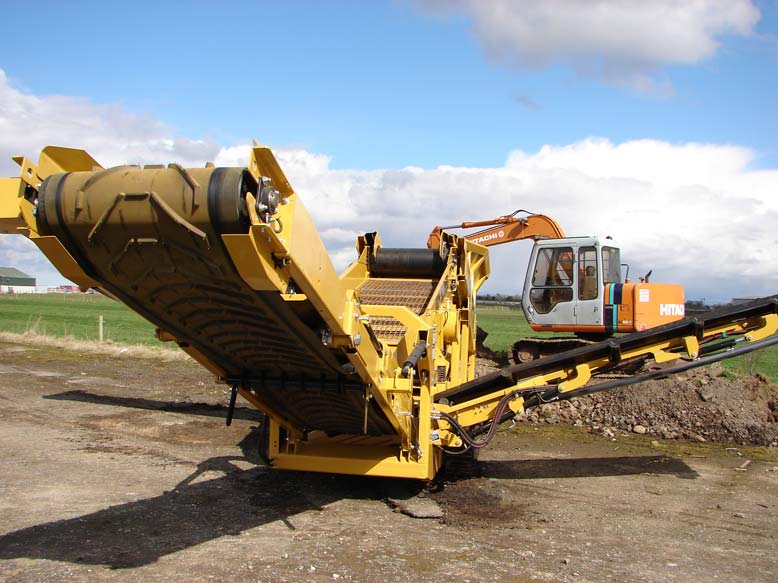

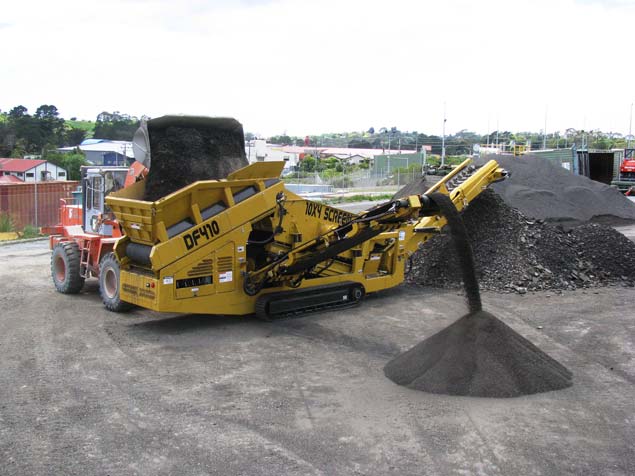

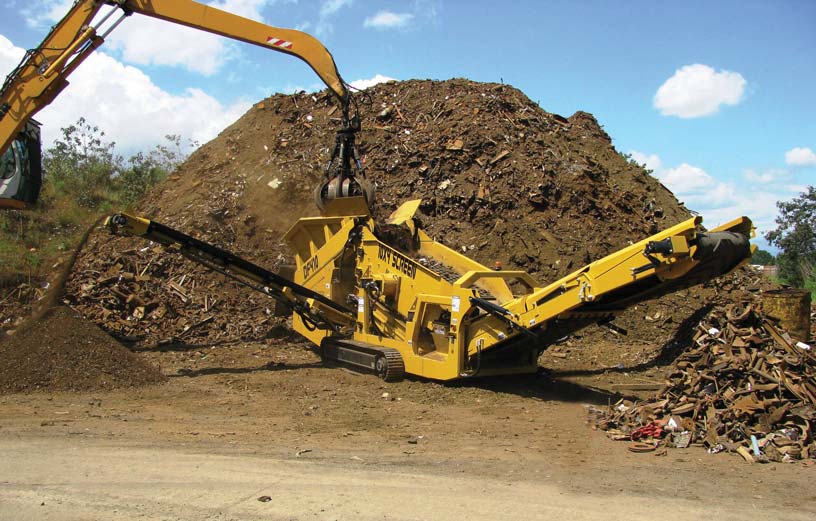

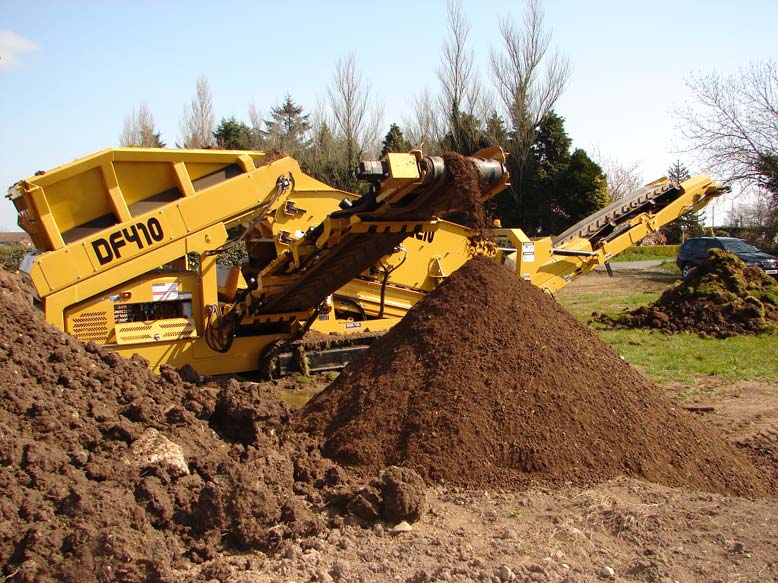

The DF410 is a compact screening and stockpiling unit designed for urban and entry level users. The DF 410 is robust and economical to run and can screen/stockpile 3 products at up to 300 TPH.

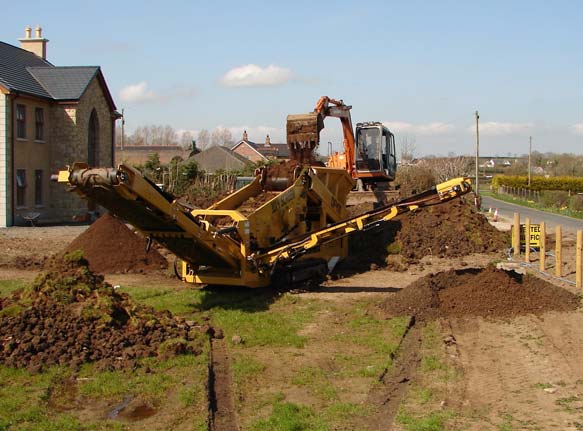

Its portability allows it to work in confined spaces and also where larger, heavier screens would find it impossible to manoeuvre.

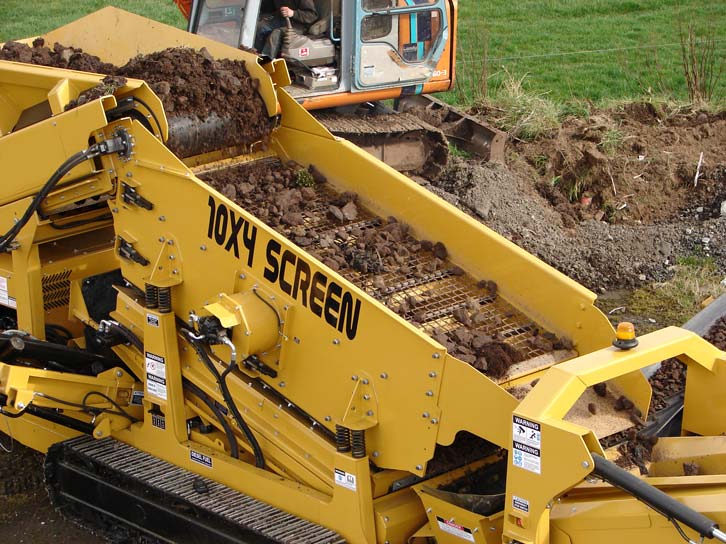

The DF410 consists of a crawler track base, variable speed heavy duty feed conveyor, double deck 3Mx1.2M (10’x4’) screenbox, powerunit, collection conveyor and 3 integral variable speed stockpiling conveyors. It has a pendant remote control system or can be operated by radio remote control if desired.

DF410 - Options

• Screen decks – Mesh, Bofor bar, Finger screens or Punch plate
• Radio remote control
• Steel apron feeder

DF410 - Advantages

• High Energy 3m x 1.2m (10’x4’) 2 bearing screen box – 2 decks (most others offer max 9’x4’ screen decks)
• Capable of processing up to 300TPH
• Variable speed control on all belts (excluding fines collection conveyor)
• Flip down feeder tailgate to accommodate feed from crusher/screener belt
• Hydraulic folding tail conveyor with drop down feature to access bottom deck for easy mesh change
• High performance hydraulic system
• Fixed Screen angle at 15°
• End tensioned mesh arrangement
• Containerizes without any breakdown
• Quick set up time typically under 20 minutes

DF410 - Applications

• Iron-Ore
• Construction & Demolition Waste (C&D Waste)
• Crushed rock
• Topsoil
• Compost
• Sand and gravel
• Bauxite
• Coal

DF410 - Technical Specifications
