SR 410 - Tracked Screen
SR410 - Overview

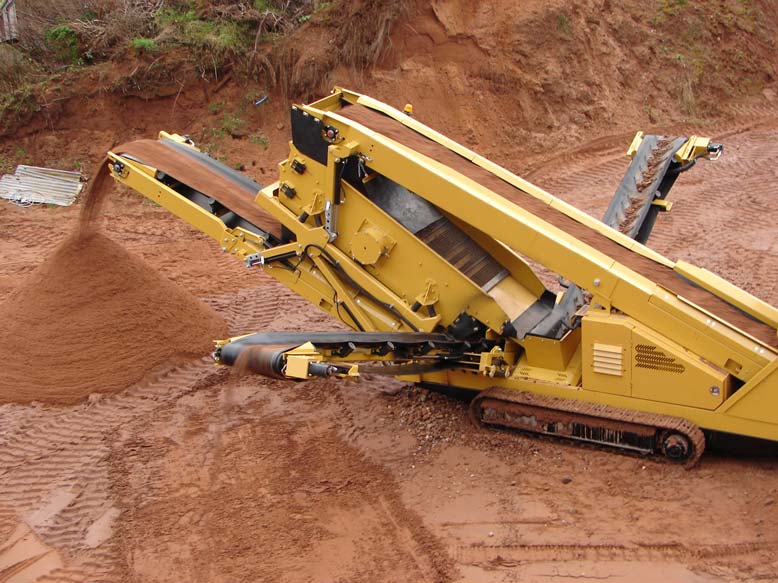

The SR410 is a compact screening and stockpiling unit designed for urban and entry level users. The SR 410 is robust and economical to run and can screen/stockpile 3 products at up to 250 TPH.
Its portability allows it to work in confined spaces and also where larger, heavier screens would find it impossible to manoeuvre.
The SR410 consists of a crawler track base, variable speed feed conveyor, double deck 3Mx1.2M (10’x4’) screenbox, powerunit, main conveyor and 3 integral variable speed stockpiling conveyors. It has a pendant remote control system or can be operated by radio remote control if desired.
SR410 - Options
- Belt feed or direct feed
- Radio remote control to operate tracks
- Wheel chassis
- Tipping grid removed
SR410 - Advantages

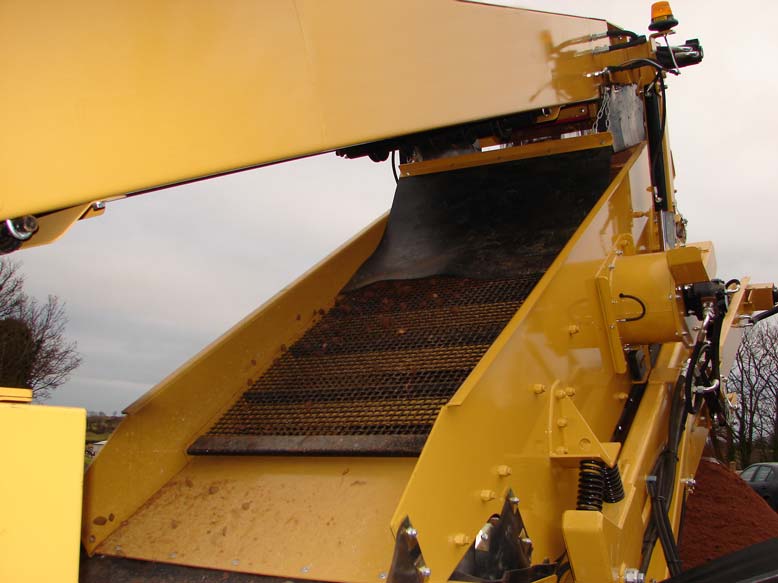

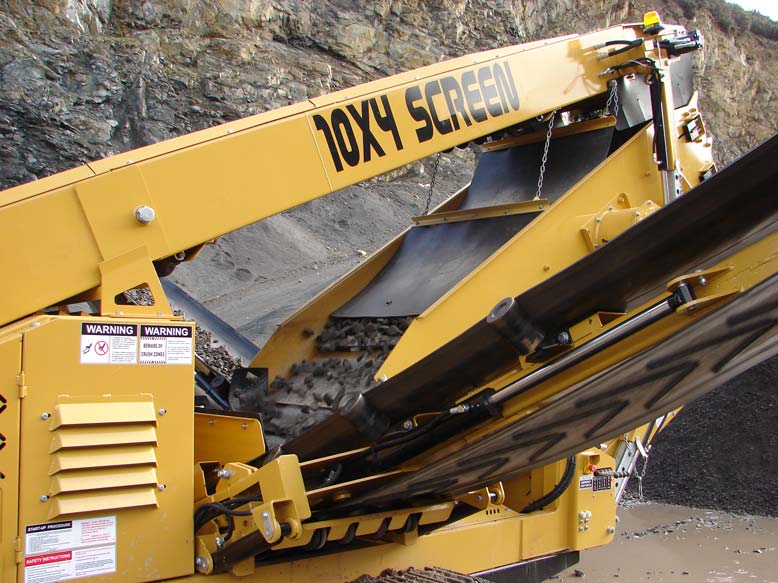

- High energy 3m x 1.2m (10’x4’) 2 bearing screen box – 2 decks
- Capable of processing up to 250TPH
- Variable speed 3 ply belt feeder
- Variable speed main and side conveyors
- Hydraulic folding tail conveyor with drop down feature to access bottom deck for easy mesh change
- High performance hydraulic system
- Screenbox angle adjustable 28° to 36°
- Fully adjustable spreader plate for optimum screening
- Remote Tipping Grid as standard
- End tensioned mesh arrangement
- Easy access to all engine consumables
- Folds and tracks into/out of container without any breakdown
- Quick set up time typically under 20 minutes
SR410 - Applications

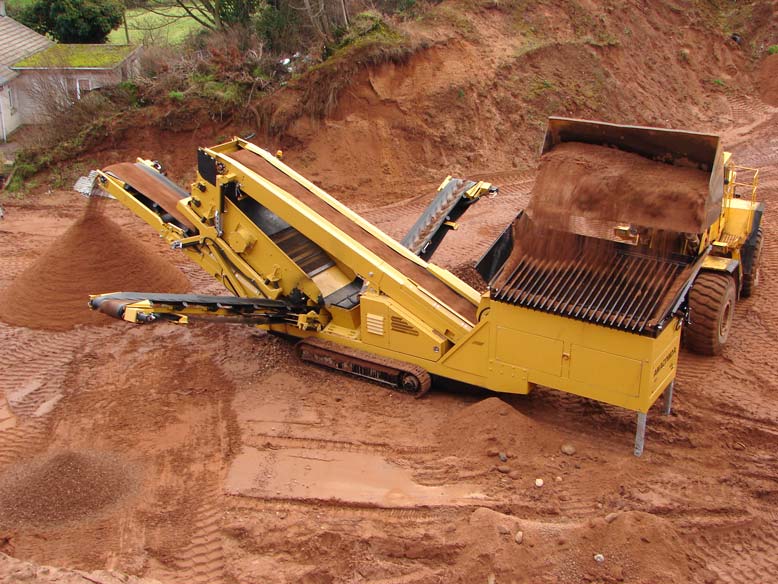

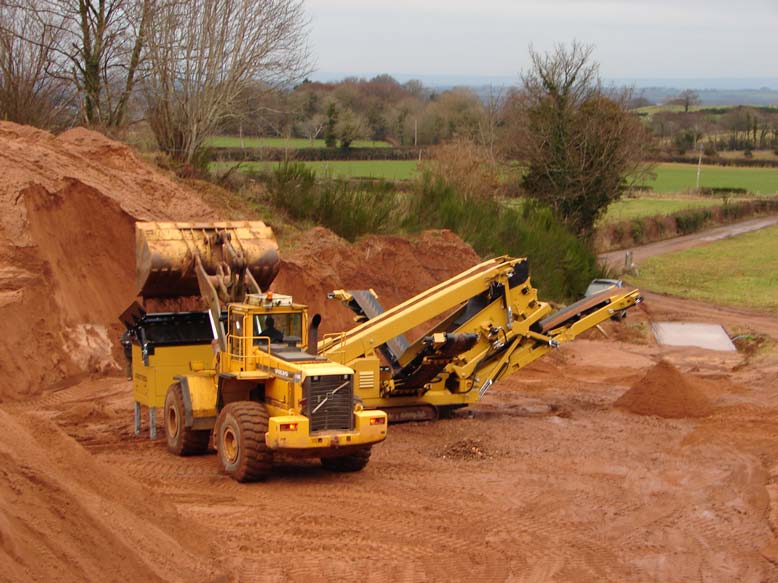

The SR410 has been primarily designed for the iron-ore, sand & gravel and aggregate markets and can be loaded directly with a shovel/excavator or from the belt of a crusher. The detailed applications include the following:
- Iron-ore
- Sand and gravel
- Aggregates
- Bauxite
- Coal
- Topsoil
- Compost
SR410 - Technical Specifications
| Total Weight | 16500kg |
| Hopper Capacity | 2.8m³ (4YD³) |
| Screenbox | 2 bearing |
| Screen Area – Top Deck | 40FT² – 3.60M² |
| Screen Area – Bottom Deck | 40FT² – 3.60M² |
| Mesh Pieces | Top 1, Bottom 2 |
| Mesh Tension | End Tensioned |
| Screen Box Angle | Variable 28° to 36° |
| Power Unit | Diesel Hydraulic with Deutz TD2011 Air Cooled engine running at 2200 RPM developing 58kW (74 HP) (Option of water cooled JCB 444 Dieselmax developing 63kW (84HP)) |
| Working Dimensions | |
| Length | 13.65M (44’9”) |
| Width | 10.01M (32’10”) |
| Height | 3.65M (12’) |
| Transport Dimensions | |
| Length | 11.63M (38’7”) |
| Width | 2.3M (7’7”) |
| Height | 2.56M (8’5”) |
