TR75 - Overview

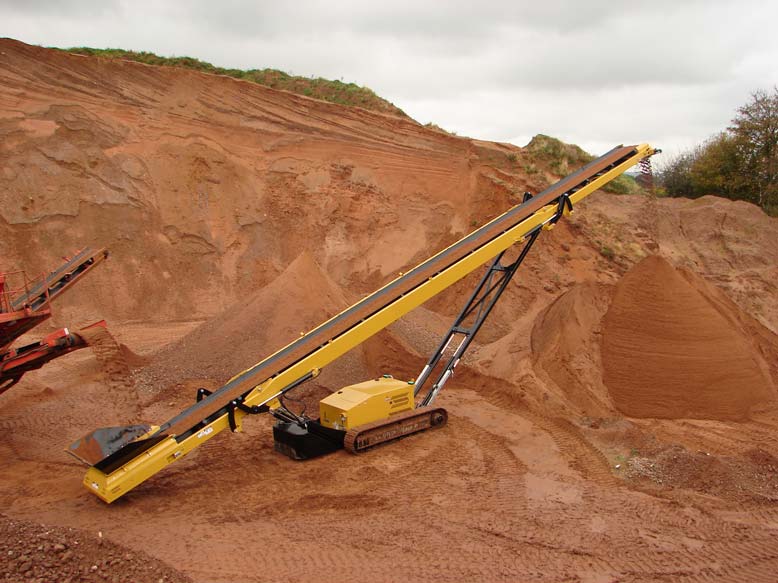

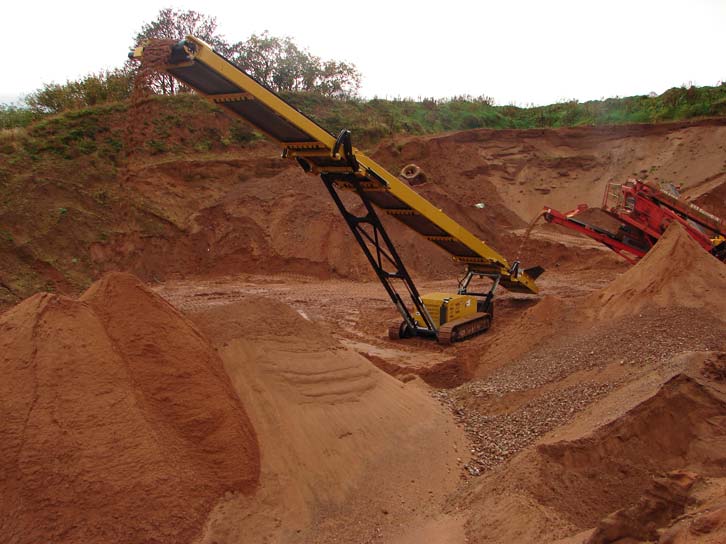

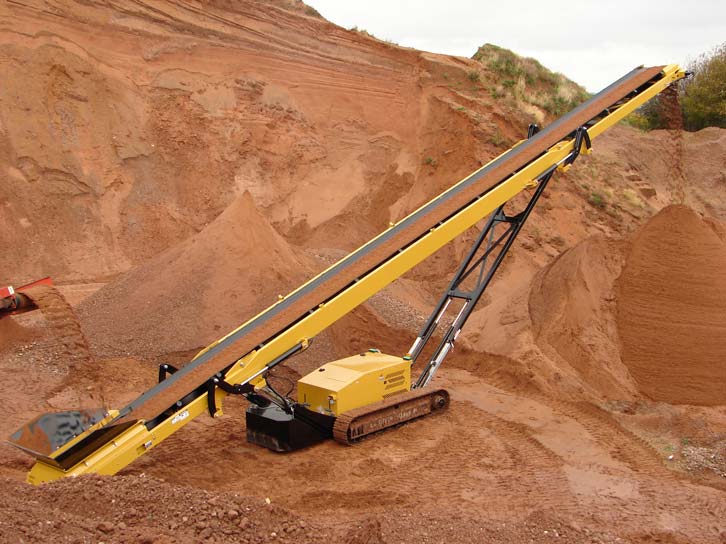

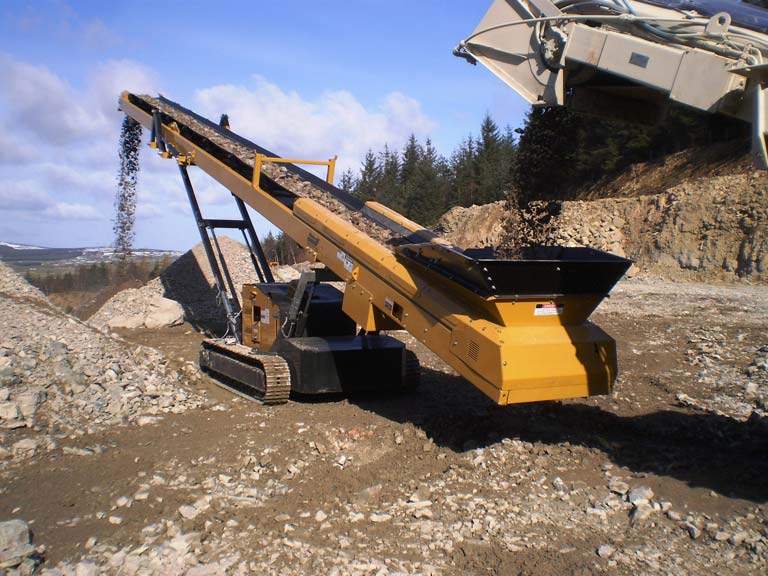

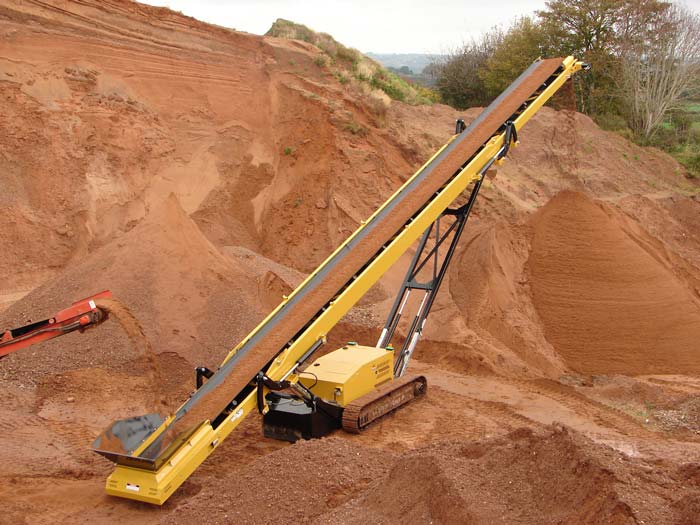

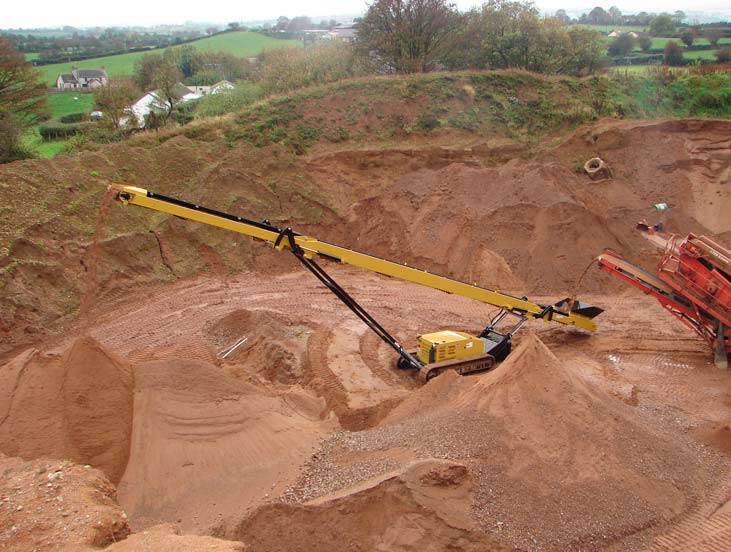

The TR75 is a track mobile high capacity stockpiling conveyor, which is strong and economical to run.

The TR75 is versatile and can be used on its own or with other screening plants.

Its portability allows it to work in confined spaces and also where heavier conveyors would find it impossible to manoeuvre.

The TR75 consists of a track base, feedboot, conveyor, powerunit and has a pendant remote control system.

Feedboot

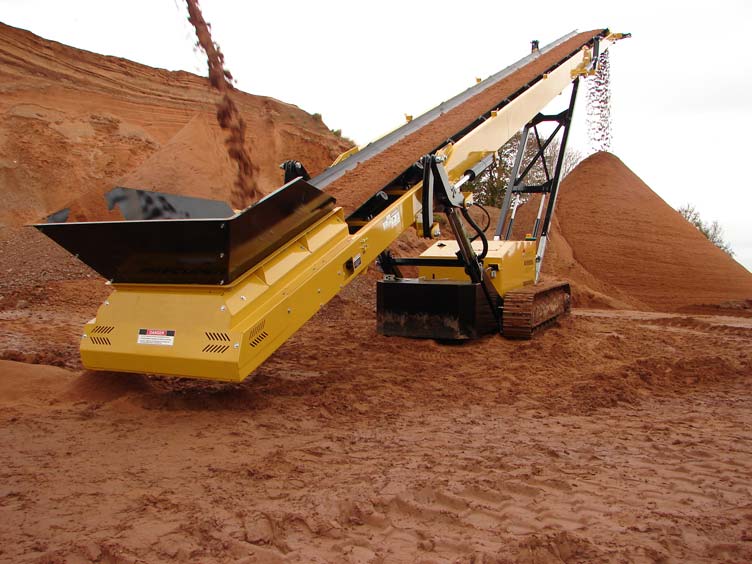

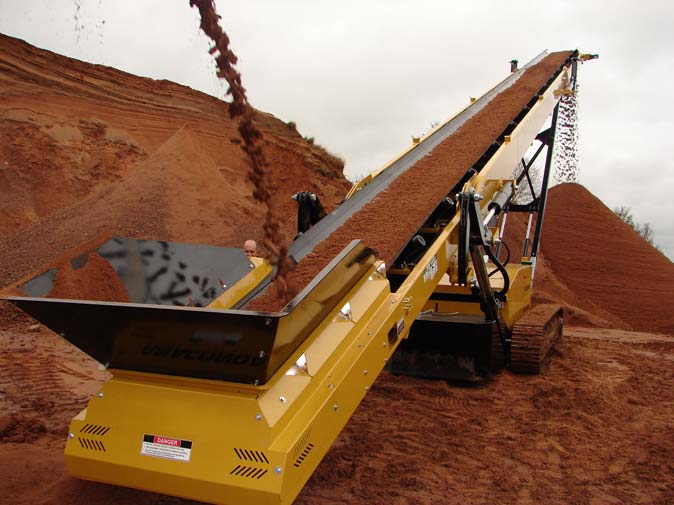

The feedboot directs the sand, gravel, coal etc. onto the conveyor belt.

Conveyor

The main frame can be raised or lowered with a hydraulic cylinder giving alternate stockpiling heights. The conveyor belt can be either plain or chevron 3 ply 1050mm (42") wide.

Drive

Self contained 84H.P. JCB diesel engine and cast iron hydraulic pumps driving cast iron motors.

TR75 - Options

• Optional Deutz or Cat Engine
• Chevron Belt
• Scraper Upgrade
• Direct Feed Grid
• Enclosed Skirting
• Radio Controlled Pendant

TR75 - Advantages

• Capable of handling up to 550TPH.
• Quick set up time typically under 20 minutes.
• Track mobile unit
• High performance hydraulic system.

TR75 - Applications

• Crushed stone
• Sand and gravel
• Coal
• Wood Chip
• Topsoil

TR75 - Technical Specifications

Features

Total Weight	12500kg
Width	2.3m (7'8")
Length (transport folded)	12m (39'1")
Powerunit	Diesel Hydraulic with JCB 444 DieselMax Water cooled developing 63kW (84HP)

Overall Dimensions

Maximum Stockpiling Height	8.9m (29')
Stockpile Capacity	1057cu m (1382cu yard)

Engine:

1. JCB 444 DieselMax at 2200 RPM developing 63kW (84 HP)

Hydraulics

Hydraulic Pump

Parker 23/23

Hydraulic Motor

Eaton OMV630 or OMV800

Control Valve

Commercial KA18 at 207 Bar (3000 PSI)

Recommended Hydraulic Oil

0 Deg. C - 30 Deg. C ambient temp, Shell Tellus 46 (or equivalent)
+ 30 Deg. C ambient temp, Shell Tellus 100 (or equivalent)

Typical Operating Pressures

Empty	29 Bar (400 PSI)
Increase in pressure per 100 Tonnes (112 U.S. Tons) per hour	29 Bar (400 PSI)

Conveyor Details

Conveyor Belt		3 ply 1050mm (42") wide
Drums outside diameter		323mm (12.75")
Drum speed (max.)	Empty	145 rpm
	Full	135 rpm
Conveyor Belt Speed	Empty	127 m/min (416 ft/min)
	Full	119 m/min (390 ft/min)

Crawler Track Data

Tractive Effort	14,276 daN
Gradability Percentage	77 -75 %
Gearbox Ratio	127:1
Hydraulic Motor	Rexroth 63 cc/rev
Approximate Speed	1.53 Km/hr (0.95 Mph)
